Scale in the Sky

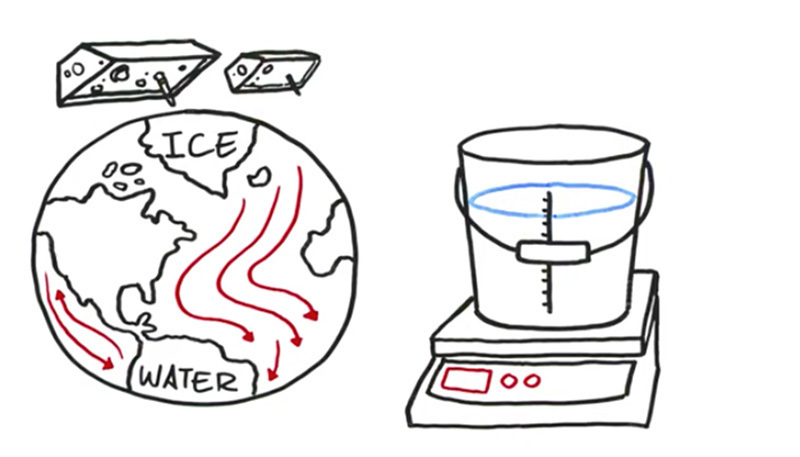

The force of gravity not only keeps us from floating away, it also lets NASA study Earth’s water and ice from space. Using a pair of twin satellites named "GRACE," we can monitor where our planet’s water is going, even when it is underground.

The force of gravity not only keeps us from floating away, it also lets NASA study Earth’s water and ice from space. Using a pair of twin satellites named GRACE, we can monitor our planet’s water.

PREVIEW

Related

The rainy and dry seasons in the Amazon Basin in 2004, revealed by gravity anomalies observed by GRACE. Reds and pinks show where and when mass was higher than average, a sign that more water was p...
More
The rainy and dry seasons in the Amazon Basin in 2004, revealed by gravity anomalies observed by GRACE. Reds and pinks show where and when mass was higher than average, a sign that more water was present, and blues show months when mass was lower.
Rainy and Dry Seasons in the Amazon (2004)
Gravity variations studied by GRACE can be used to determine ground water storage on land masses.
More
Gravity variations studied by GRACE can be used to determine ground water storage on land masses. By comparing current data to an average over time, scientists can generate an anomaly map to see where ground water storage has been depleted or increased.
Global Terrestrial Water Storage Anomaly
Research based on GRACE observations indicates that between 2002 and 2016, Greenland shed approximately 280 gigatons of ice per year.
More
Mass of the Greenland ice sheet has rapidly declined in the last several years. Research based on observations from the Gravity Recovery and Climate Experiment (GRACE) satellites indicates that between 2002 and 2016, Greenland shed approximately 280 gigatons of ice per year.
Greenland Ice Loss 2002-2016
Changes in total water storage on Earth in 2007, as measured by GRACE.
More
Water storage on Earth in 2007
Water Storage on Earth in 2007
NASA scientists used GRACE data to identify regional trends of freshwater movement, and combined that information with data from other satellites, climate models and precipitation measurements to d...
More
The Gravity Recovery and Climate Experiment, or GRACE mission, used precise measurements of the motions of two spacecraft in Earth’s orbit to track the movement of water through the oceans, land, and atmosphere.
For 15 Years, GRACE Tracked Freshwater Movements Around the World
GRACE-Follow On (GRACE-FO) is a satellite mission that launched in May 2018. GRACE-FO will continue the work of the GRACE satellite mission tracking Earth's water movement around the globe. These d...
More
Video for the GRACE-FO mission.
Tracking Water from Space
The signal of the December 2004 earthquake in the Indian Ocean in GRACE observations of Earth's gravity field.
More
The signal of the December 2004 earthquake in the Indian Ocean in GRACE observations of Earth's gravity field.
GRACE Sees Earthquake in Indian Ocean
For 15 years, the GRACE mission has unlocked mysteries of how water moves around our planet. It gave us the first view of underground aquifers from space, and shows how fast polar ice sheets and mo...
More
For 15 years, the GRACE mission has unlocked mysteries of how water moves around our planet. It gave us the first view of underground aquifers from space, and shows how fast polar ice sheets and mountain glaciers are melting.
15 Years of GRACE Earth Observations
Work begins to build NASA’s twin satellites, under construction by Airbus Defense and Space.
More
NASA’s twin satellites, under construction by Airbus Defense and Space, will be the follow-on spacecraft of the GRACE mission, which have contributed significantly to global climate research since 2002.
Build Commences on GRACE-FO Satellites
This visualization displays monthly GRACE data in the Amazon basin, demonstrating water storage and movement.
More
This visualization displays monthly GRACE data in the Amazon basin. GRACE (Gravity Recovery and Climate Experiment) measures mass distribution and in this instance is used to demonstrate water storage and movement in the basin.
Amazon Basin Monthly GRACE Data
GRACE Follow-On will test a Laser Ranging Interferometer to measure intersatellite distance changes with unprecedented precision.
More
GRACE Follow-On – the future of satellite geodesy. Launching in 2017, this mission will be the first to use a Laser Ranging Interferometer to measure intersatellite distance changes with unprecedented precision.
Laser Ranging Interferometer
A simplified example of how the distance between the GRACE-FO satellites changes as they pass from the Caribbean Sea across Colombia and Peru.
More
A simplified example of how the distance between the GRACE-FO satellites changes as they pass from the Caribbean Sea across Colombia and Peru (which have higher mass than the oceans) to the Pacific Ocean. Panel 1: When both spacecraft are over the ocean, the distance between them is relatively constant.
How GRACE-FO Measures Gravity
GRACE-FO will measure Atlantic Ocean bottom pressure as an indicator of deep ocean current speed, as GRACE did.
More
GRACE-FO will measure Atlantic Ocean bottom pressure as an indicator of deep ocean current speed, as GRACE did. This pattern of above-average (blue) and below-average (red) seafloor pressure in 2009 GRACE data revealed a temporary slowing of deep ocean currents.
Ocean Bottom Pressure
NASA JPL-UC Irvine glaciologist Eric Rignot explains how glaciers in West Antarctica are changing.
More
NASA JPL-UC Irvine glaciologist Eric Rignot explains how glaciers in West Antarctica are changing.
West Antarctic Collapse
Gravity anomaly map using GRACE data.
More
Gravity anomaly map using GRACE data.
Gravity Anomaly Map Using GRACE Data
Visualization of the mass change over Greenland from January 2004 through June 2014.
More
Mass changes in Greenland.
GRACE Mission Measures Global Ice Mass Changes
Between 2002 and 2016, Antarctica shed approximately 125 gigatons of ice per year, causing global sea level to rise by 0.35 millimeters per year.
More
Between 2002 and 2016, Antarctica shed approximately 125 gigatons of ice per year, causing global sea level to rise by 0.35 millimeters per year.
Antarctic Ice Loss 2002-2016
This map from September 2015 shows deep drought in California, Nevada and Texas.
More
While the GRACE mission was active, scientists at NASA’s Goddard Space Flight Center generated groundwater and soil moisture drought indicators like this every week from GRACE data on terrestrial water storage and other observations, using a numerical model of land surface water and energy processes.
Groundwater Drought Indicator
NASA’s Gravity Recovery and Climate Experiment (GRACE) has measured significant groundwater depletion around the world in recent years.
More
GRACE data over the United States, 2003-2012
GRACE Sees Groundwater Losses Around the World
While the two spacecraft of the GRACE-FO mission go through testing at the IABG facitilty in Germany, engineers deploy the S-Band antenna boom to ensure that it works.
More
While the two spacecraft of the GRACE-FO mission go through testing at the IABG facitilty in Germany, engineers deploy the S-Band antenna boom to ensure that it works.
Airbus Tests GRACE-FO Antenna Boom
GRACE observed Earth’s surface mass changes nearly every month from 2002 to mid-2017. GRACE Follow-On will provide crucial continuity to these observations for the next five years or more.
More
GRACE observed Earth’s surface mass changes nearly every month from 2002 to mid-2017. GRACE Follow-On will provide crucial continuity to these observations for the next five years or more.
Earth Mass Changes, 2002 to 2017
An animation showing “sea level fingerprints,” or patterns of rising and falling sea levels across the globe in response to changes in Earth’s gravitational and rotational fields.
More
An animation showing “sea level fingerprints,” or patterns of rising and falling sea levels across the globe in response to changes in Earth’s gravitational and rotational fields.
Cumulative Sea Level Change 2002-2015
3-2-1 liftoff of Falcon 9 with GRACE-FO! The Gravity Recovery and Climate Experiment Follow-on, or GRACE-FO, a collaboration between NASA and German Research Centre for Geosciences (GFZ) launched f...
More
GRACE-FO launches aboard a Falcon 9.
GRACE-FO Launches Aboard a SpaceX Falcon 9
Variations in water storage in the Tigris and Euphrates river basins from 2003 to 2009, measured by GRACE. Reds represent drier conditions, while blues represent wetter conditions. The majority of ...
More
Variations in water storage in the Tigris and Euphrates river basins from 2003 to 2009, measured by GRACE. Reds represent drier conditions, while blues represent wetter conditions. The majority of the water lost was due to reductions in groundwater caused by human activities.
Tigris and Euphrates Water Storage, 2003 to 2009
The twin GRACE-FO satellites will pick up where the GRACE mission (2002-2017) left off, studying our changing planet.
More
Video reel for media on the GRACE-FO mission to study Earth.
GRACE Follow-On Media Reel
